No lights Libra
Author Message
Looking like a GTM
User avatar

Joined: Tue May 17, 2016 9:48 pm
Posts: 163
Location: Selkirkshire
GTM: Libra
Post No lights Libra
Before searching everywhere on the Libra I have an electrical fault on the lights. Yesterday, happily driving along country roads from Berwick, swopping from main beam to dipped frequently, the lights for some reason just stopped working! Thankfully near-ish to home so got here with a little help.
I have indicators, reversing lights and brake lights - so have lost side, dipped and main beam and on the rear tail lights and number plate light
All fuses checked and OK
All wiring showing no damage - so presume OK
Any ideas of where to check next...... possibly relays or light switch on column?


Thu Feb 02, 2023 1:38 pm
Profile E-mail
GTM Nirvana
User avatar

Joined: Sun Oct 19, 2014 10:10 pm
Posts: 1135
Location: Bristol
GTM: Spyder
Post Re: No lights Libra
Hmmm, the various lighting circuits are on different fuses so for everything to have failed must be something that is common to all the lighting so I think you are correct in thinking about the stalk switch or possibly the relays. IIRC the lighting relays are the ones at either end of the row of relays on the main fuse board under the right hand side of the dash, one deals with lights generally and the other does the dip/main switching. As they are easier to replace than the stalk switch I'd try those first. They are different pin layouts from each other and from all the other relays so you can't just swap with another.
Attachment:
fuse board.jpg
fuse board.jpg [ 349.47 KiB | Viewed 3795 times ]


Thu Feb 02, 2023 3:35 pm
Profile E-mail
Ready for SVA
User avatar

Joined: Thu Jun 27, 2013 11:32 pm
Posts: 492
Location: Norfolk
GTM: Libra
Post Re: No lights Libra

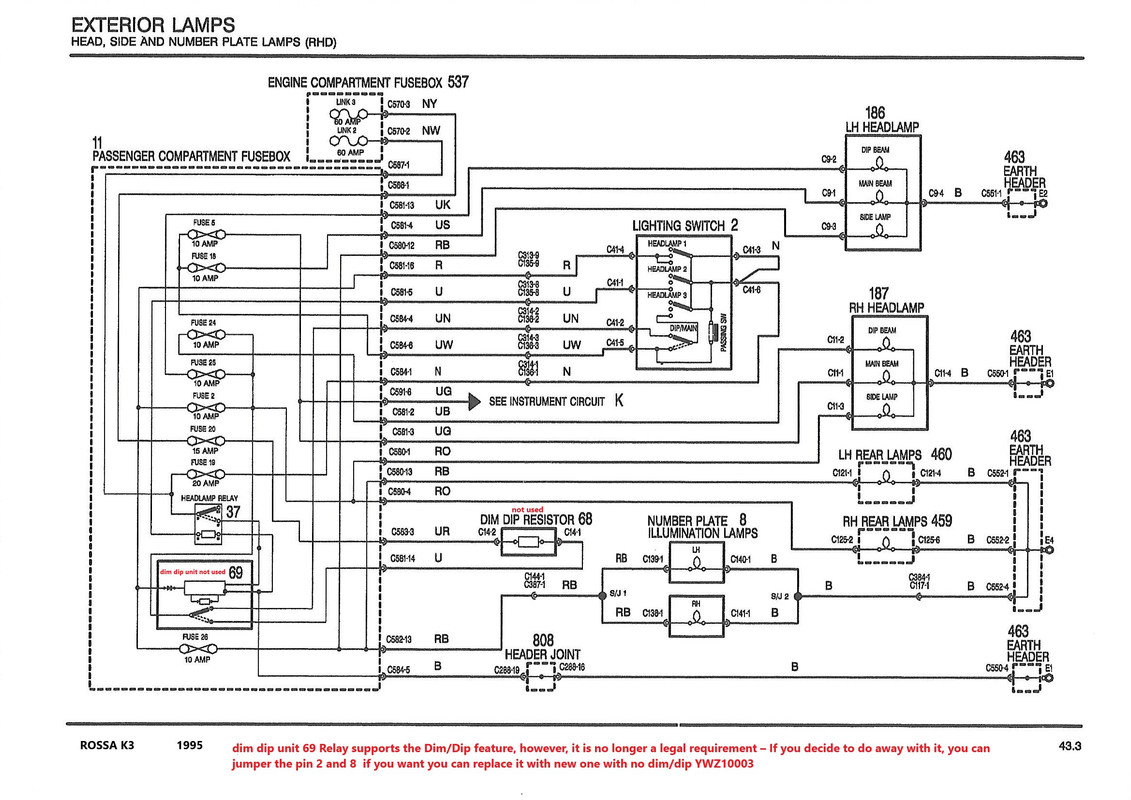

I don't know if this is any help here is a wiring diagram of the lights I have done away with the dim dip relay on my k3 I think it's the same as the libra


_________________
I cannot guarantee against unauthorized modifications or improper use of this information
I assume no liability for property damage or injury incurred as a result of any of the information contained in this
I recommend safe practices


Thu Feb 02, 2023 4:08 pm
Profile E-mail
On the Road

Joined: Sat Sep 29, 2007 3:45 pm
Posts: 997
Location: SL2 4JW
GTM: Libra
Post Re: No lights Libra
I had this problem last year, it was a broken wire going to the left stalk.

Bob.

_________________
Bob S.
GTMOC Secretary


Thu Feb 02, 2023 11:32 pm
Profile E-mail
Looking like a GTM
User avatar

Joined: Tue May 17, 2016 9:48 pm
Posts: 163
Location: Selkirkshire
GTM: Libra
Post Re: No lights Libra
Continuation of No Lights Libra................ It appears it is the fusebox that is end of life inside!
Has anybody a spare fuse box code YQE101580
Cheers Phil


Attachments:
069 fusebox.jpg
069 fusebox.jpg [ 260.23 KiB | Viewed 3191 times ]
Thu Mar 30, 2023 12:46 pm
Profile E-mail
GTM Nirvana
User avatar

Joined: Sun Oct 19, 2014 10:10 pm
Posts: 1135
Location: Bristol
GTM: Spyder
Post Re: No lights Libra
I think I have a MGTF fuse box over in MiL's garage. Haven't clue if they are interchangeable but MGF/TF used a lot of bits from the Metro parts bins so there is a chance. Next time I'm over there I'll take a look.
