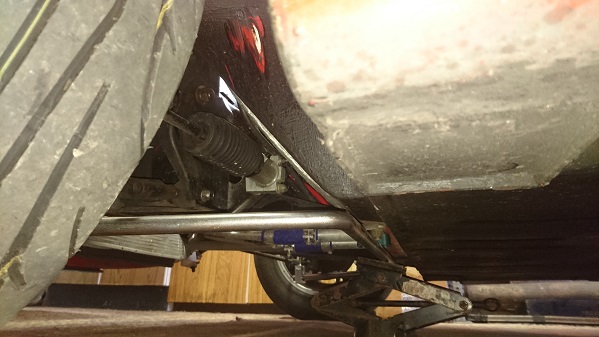

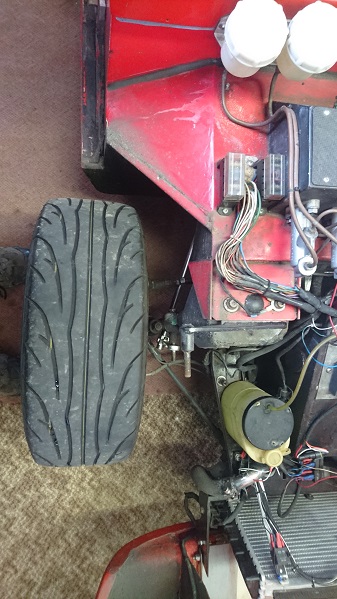

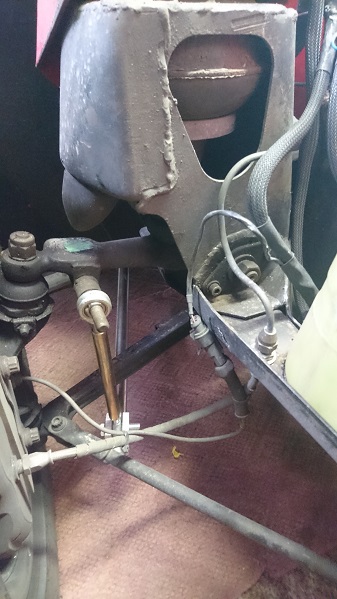

Bit of a thread revival. I mocked up the Mini spares bar I bought, overall I am not too impressed with the build quality but my standards are probably a bit high, I can not fit the bar on the front of the subframe due to the radiator, so went for this option for mocking up, looks like a promising avenue to look at. Attachment:
DSC_1844.JPG [ 95.78 KiB | Viewed 8416 times ]
Attachment:
DSC_1843.JPG [ 121.87 KiB | Viewed 8416 times ]
Attachment:
DSC_1842.JPG [ 105.03 KiB | Viewed 8416 times ]
_________________ IF wile e coyote had a GTM he would have one with Nitrous too! watch out road runner! The First GTM into the 11s then the 10s, PB 10.87 @ 125.5 Mph on A048 tyres, and fully road legal at Santa Pod
|
Sun May 21, 2017 10:22 pm |
|
|
grizzler73
Looking like a GTM
Joined: Wed Sep 30, 2015 8:25 pm Posts: 165 GTM: Cox/Coupe
|
Re: Anti roll bar's
Hi Neil Looks promising! What length are the arms? I was thinking of going down the torsion bar route, so that you have a tube with the arm welded on one end then a removable one on the other, sat in poly blocks or even pillow blocks. does the bar pass through the holes in the subframe or can you put it further back?
|
Mon May 22, 2017 9:27 am |
|
|
West
Admin, and Coupe Nutter
Joined: Fri Sep 14, 2007 10:34 pm Posts: 1762 Location: In the workshop GTM: Cox/Coupe
|
Re: Anti roll bar's
Bar is positioned along the edge of the floor. Plan would be poly blocks I might have a chance to look at this again this weekend.
Neil
_________________ IF wile e coyote had a GTM he would have one with Nitrous too! watch out road runner! The First GTM into the 11s then the 10s, PB 10.87 @ 125.5 Mph on A048 tyres, and fully road legal at Santa Pod
|
Mon May 22, 2017 10:40 am |
|
|
Ken555
On the Road
Joined: Fri Sep 28, 2007 7:39 pm Posts: 573 Location: Aberdeenshire GTM: Cox/Coupe
|
Re: Anti roll bar's
I'll see if I can get a snap of my setup.
The bar run along the front of the subframe, just behind the tiebar mounts. The droplinks have spherical bearings (Rose Joints©) up to the damper bolt, but in front of the damper.
_________________ Member No 1185
|
Mon May 22, 2017 11:53 am |
|
|
West
Admin, and Coupe Nutter
Joined: Fri Sep 14, 2007 10:34 pm Posts: 1762 Location: In the workshop GTM: Cox/Coupe
|
Re: Anti roll bar's
be interesting to see how the KAD bar fits. Also while your there could you get a couple of measurements of the bar? Then we can compare the stiffness of it to the minispares one.
Neil
_________________ IF wile e coyote had a GTM he would have one with Nitrous too! watch out road runner! The First GTM into the 11s then the 10s, PB 10.87 @ 125.5 Mph on A048 tyres, and fully road legal at Santa Pod
|
Mon May 22, 2017 12:41 pm |
|
|
Ken555
On the Road
Joined: Fri Sep 28, 2007 7:39 pm Posts: 573 Location: Aberdeenshire GTM: Cox/Coupe
|
Re: Anti roll bar's
5/8” Diameter But will measure arm lengths tonight Edit arms 270mm from centre of bend to centre of spherical bearing 570mm wide img photo sharing
_________________ Member No 1185
|
Mon May 22, 2017 2:51 pm |
|
|
West
Admin, and Coupe Nutter
Joined: Fri Sep 14, 2007 10:34 pm Posts: 1762 Location: In the workshop GTM: Cox/Coupe
|
Re: Anti roll bar's

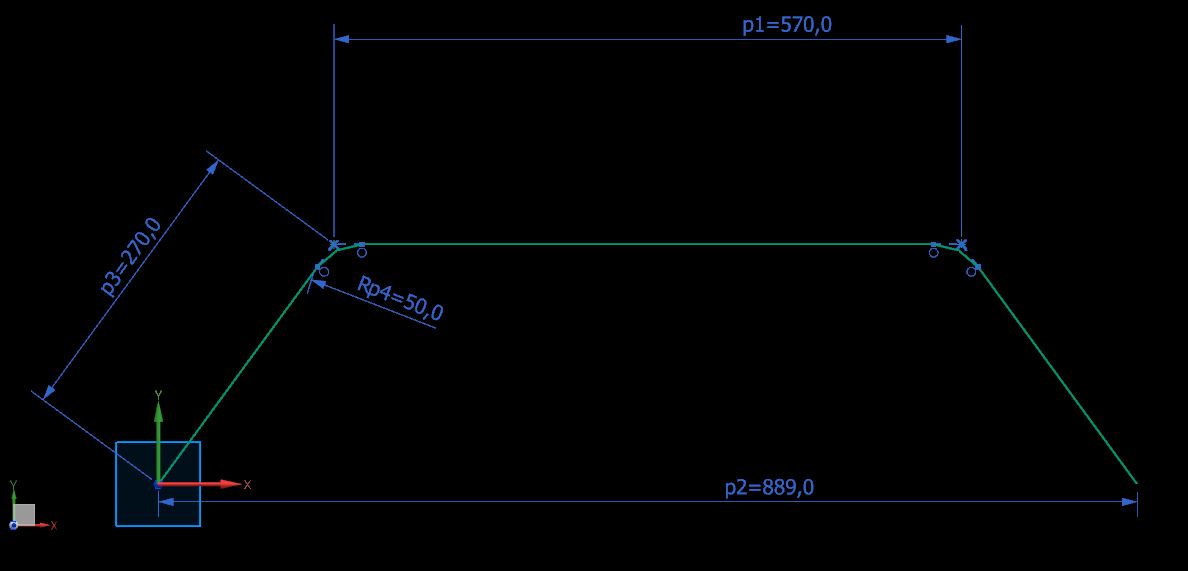

Useful info so far Ken, Fits well the KAD bar. Especially for a GTM the mini spares one sits further forward and does have some possible clearance issues with the tie bars too. Possible for one more measurement? Attachment:
Antirollbar.JPG [ 36.18 KiB | Viewed 8351 times ]
P2 would finish off the info nicely. Then I can crunch some numbers. Neil
_________________ IF wile e coyote had a GTM he would have one with Nitrous too! watch out road runner! The First GTM into the 11s then the 10s, PB 10.87 @ 125.5 Mph on A048 tyres, and fully road legal at Santa Pod
|
Mon May 22, 2017 9:54 pm |
|
|
Ken555
On the Road
Joined: Fri Sep 28, 2007 7:39 pm Posts: 573 Location: Aberdeenshire GTM: Cox/Coupe
|
Re: Anti roll bar's
I make it 850mm
_________________ Member No 1185
|
Tue May 23, 2017 1:09 am |
|
|
West
Admin, and Coupe Nutter
Joined: Fri Sep 14, 2007 10:34 pm Posts: 1762 Location: In the workshop GTM: Cox/Coupe
|
Re: Anti roll bar's
spot on! the guess was close . Will try to do some calcs between all the other jobs. Neil
_________________ IF wile e coyote had a GTM he would have one with Nitrous too! watch out road runner! The First GTM into the 11s then the 10s, PB 10.87 @ 125.5 Mph on A048 tyres, and fully road legal at Santa Pod
|
Tue May 23, 2017 6:29 am |
|
|
West
Admin, and Coupe Nutter
Joined: Fri Sep 14, 2007 10:34 pm Posts: 1762 Location: In the workshop GTM: Cox/Coupe
|
Re: Anti roll bar's
Did some very quick calcs compared to my best guess for the KAD bar, its quite a bit stiffer than I first thought as its got smaller lever arms than I had allowed for.
Will do the same calcs for the minispares one over the weekend.
Neil
_________________ IF wile e coyote had a GTM he would have one with Nitrous too! watch out road runner! The First GTM into the 11s then the 10s, PB 10.87 @ 125.5 Mph on A048 tyres, and fully road legal at Santa Pod
|
Tue May 23, 2017 7:15 pm |
|
|
West
Admin, and Coupe Nutter
Joined: Fri Sep 14, 2007 10:34 pm Posts: 1762 Location: In the workshop GTM: Cox/Coupe
|
Re: Anti roll bar's
Done some very basic calcs
Minispares bar [full soft] compared to KAD bar [non adjustable]
Diameter Minispares 3/4 KAD 5/8
Effective widths Minispares 970 mm KAD 570 mm
Effective arm length Minispares full soft 350 mm KAD bar 230.9 mm
Stiffness Minispares 2235 in/lbs/degree KAD 4216 in/lbs/degree
So on paper the Mini spares bar is 53% softer than the KAD bar. I suspected this may had been the case. On my guesstimate calculations for weight transfer. The mini spares bar is possibly better suited for an initial starting point, but the KAD bar may be where you want to end up but it may induce some understeer on turn in at this point it may be worth looking at complimenting the front with a rear bar.
Rear bars however do bring their own issues such as reduced traction on corner exit.
Please take all this with a pinch of salt as my calculations are still making some assumptions, for example wheel effective spring rates with the cones. An item I plan to measure more accurately as time goes on.
Neil
_________________ IF wile e coyote had a GTM he would have one with Nitrous too! watch out road runner! The First GTM into the 11s then the 10s, PB 10.87 @ 125.5 Mph on A048 tyres, and fully road legal at Santa Pod
|
Sun May 28, 2017 11:14 am |
|
|
