Cumbrian coupe
Author Message
Ready for SVA

Joined: Tue Sep 09, 2008 4:46 pm
Posts: 302
Post Re: Cumbrian coupe
Ref the clutch return spring -- with judicious use of a hammer you can bend the bracket that fits on the arm so that it sits horizontal under the chassis frame. With a bit of jiggling the spring will still fit and find its way to the other small bracket that fits on the bleed nipple. The spring sits very close to the gaiter and in some cases may rub so a tie wrap round it might avoid it coming off. The spring leverage ratio is reduced a little but I don't think this matters in practice.
Hope this helps.
Steve


Tue Feb 28, 2017 10:24 am
Profile E-mail
GTM delivered

Joined: Fri Sep 02, 2016 8:39 pm
Posts: 26
Location: Cumbria
GTM: Cox/Coupe
Post Re: Cumbrian coupe
Time for an update, not had much time lately due to revision for my GCSE exams. Inspired by Andys 83 coupe (now the LuxSpeed coupe) it was decided to fit a bias pedal box, this also gave me a good opportunity to learn to weld. The front subframe has been fitted, we are trying coil springs all round in place of rubber cones, there are softer springs on the front and more firm springs at the rear.
Attachment:
20170325_151329_resized.jpg [ 302.48 KiB | Viewed 12296 times ]

Attachment:
20170325_162318_resized.jpg [ 322.8 KiB | Viewed 12296 times ]

Attachment:
20170325_143834_resized.jpg [ 298.01 KiB | Viewed 12296 times ]

Attachment:
20170325_161333_resized.jpg [ 254.19 KiB | Viewed 12296 times ]

Attachment:
20170325_164653_resized.jpg [ 308.65 KiB | Viewed 12296 times ]

Attachment:
20170415_163712_resized.jpg [ 257.13 KiB | Viewed 12296 times ]

Attachment:
20170602_180239_resized.jpg [ 284.14 KiB | Viewed 12296 times ]

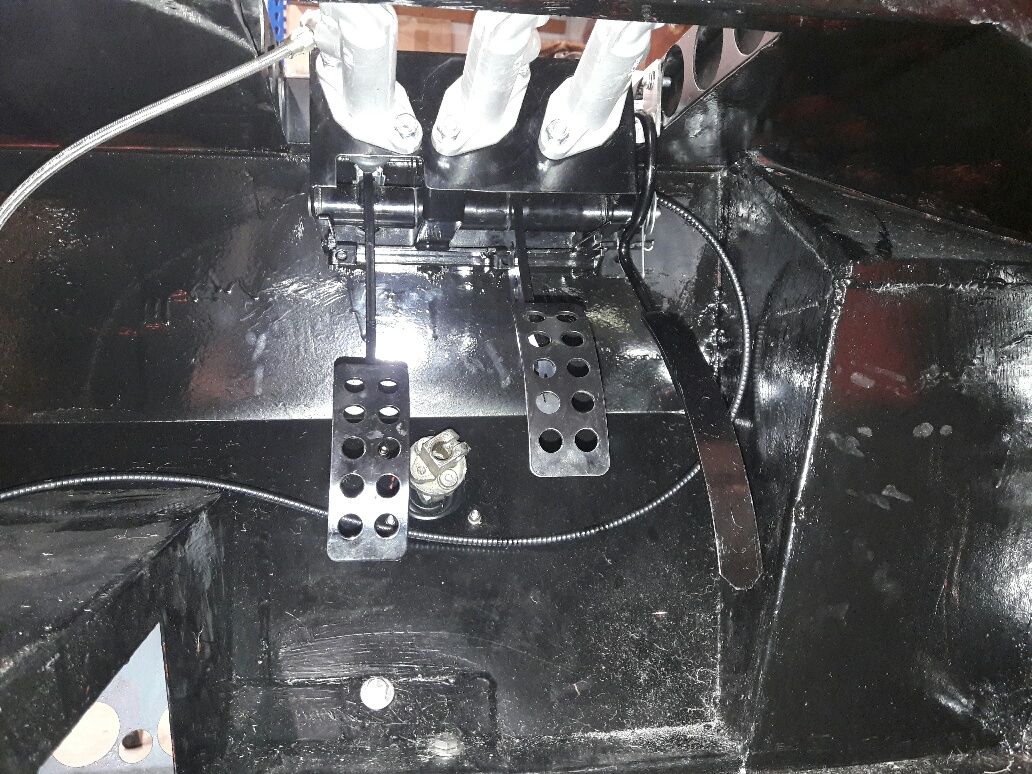

Pedal heights not finally set.
Attachment:
20170602_180253_resized.jpg [ 407.29 KiB | Viewed 12296 times ]

Attachment:
20170602_180401_resized.jpg [ 310.79 KiB | Viewed 12296 times ]


Wed Jun 07, 2017 7:29 pm
Profile E-mail
GTM Nirvana
User avatar

Joined: Sun Oct 19, 2014 10:10 pm
Posts: 1136
Location: Bristol
GTM: Spyder
Post Re: Cumbrian coupe
Nice bit of fabrication there. Coming along nicely.


Wed Jun 07, 2017 9:57 pm
Profile E-mail
GTM delivered

Joined: Thu Oct 15, 2009 12:15 am
Posts: 25
Post Re: Cumbrian coupe
I like where this thread is going. Should be a beauty when you're finished. You've fitted the same dampers as I have - they've worked well so far on my car in all conditions. I'd love to try springs instead of rubber cones but don't want to mess with the car too much at the moment as I've finally been enjoying driving it for the last couple of years, after owning it since '98.
Keep it up :D


Thu Jun 08, 2017 5:37 pm
Profile E-mail
GTM delivered

Joined: Fri Sep 02, 2016 8:39 pm
Posts: 26
Location: Cumbria
GTM: Cox/Coupe
Post Re: Cumbrian coupe
Time for quite a large update! Firstly the gear change has been sand blasted and powder coated and has now been fitted to the car, with some minor reshaping to get it to work smoothly.
Attachment:
Gear Change.jpg
Gear Change.jpg [ 304.64 KiB | Viewed 11846 times ]

Attachment:
Gear Change 3.jpg
Gear Change 3.jpg [ 277.7 KiB | Viewed 11846 times ]

A miniature heater has been fitted mounted on aluminium brackets that I created. The holes for the hoses have been moved from the side of the tunnel to the top for convenience.
Attachment:
Heater.jpg [ 239.37 KiB | Viewed 11846 times ]

Attachment:
Heater 2.jpg
Heater 2.jpg [ 261.13 KiB | Viewed 11846 times ]

A Specialist Components 5 port engine management kit has been fitted and is set to give the engine some life! It has a single 50mm throttle body. The wiring harness for this has been fitted, and some of the high pressure hoses have been fitted, along with a fuel pressure regulator on the rear bulkhead. The stainless steel exhaust manifold is also a Specialist Components item and has points to mount Lambda sensors. Unfortunately the shiny exhaust has been wrapped to reduce heat in the engine bay. :(
Attachment:
Engine and Exhaust.jpg
Engine and Exhaust.jpg [ 259.2 KiB | Viewed 11846 times ]

Attachment:
Injection.jpg [ 235.75 KiB | Viewed 11846 times ]

Attachment:
Engine.jpg [ 256.9 KiB | Viewed 11846 times ]

Attachment:
20170930_085854_resized.jpg [ 278.15 KiB | Viewed 11846 times ]

Attachment:
20170930_130053_resized.jpg [ 222.71 KiB | Viewed 11846 times ]

The injection system was removed in this photo to remove some imperfections inside the inlet manifold.
Attachment:
20170930_172039_resized.jpg [ 274.32 KiB | Viewed 11846 times ]


Thu Oct 19, 2017 9:44 pm
Profile E-mail
GTM delivered

Joined: Fri Sep 02, 2016 8:39 pm
Posts: 26
Location: Cumbria
GTM: Cox/Coupe
Post Re: Cumbrian coupe

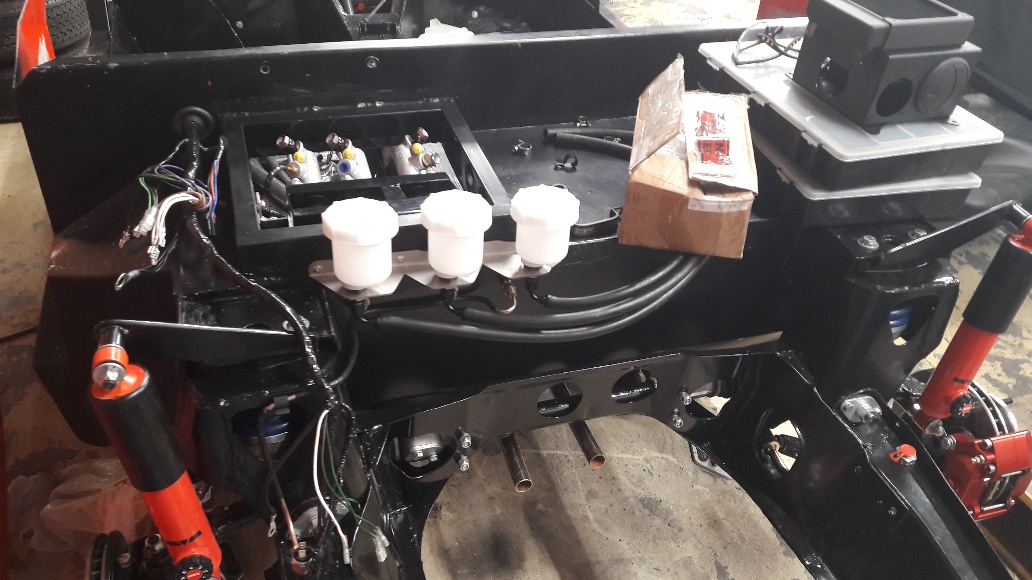

The master cylinders for the bias brake system and clutch have been attached to the pedal box assembly and all brake lines front and rear have been fitted. The front radiator (Vauxhall combo) has been fitted with not much room to spare. The radiator has been rubber mounted on brackets made out of aluminium strip, and the fan on the rear fixed using more metal strip. The inlet and outlet of the radiator is attached to the stainless pipes down the centre of the car using flexible rubber hosing. The radiator also has a useful small bleed valve in case of an airlock.

Attachment:
Master Cylinders.jpg
Master Cylinders.jpg [ 214.65 KiB | Viewed 11161 times ]

Attachment:
Rad trial.jpg
Rad trial.jpg [ 229.69 KiB | Viewed 11161 times ]

Attachment:
Rad with fan.jpg
Rad with fan.jpg [ 256.29 KiB | Viewed 11161 times ]

Attachment:
Rad brackets.jpg
Rad brackets.jpg [ 220.87 KiB | Viewed 11161 times ]


Last edited by lakelandgtm on Wed Jan 17, 2018 7:07 pm, edited 1 time in total.

Thu Oct 19, 2017 9:57 pm
Profile E-mail
Part built GTM
User avatar

Joined: Sat Feb 11, 2012 2:51 pm
Posts: 134
Location: NE
GTM: Libra
Post Re: Cumbrian coupe
Beautiful job!!!

_________________
V6 GTM Libra '10 years in the making!!!'

Libra V6
Hawk AC Ace
TVR 3000M
MG ZTT 180
Skoda Fabia VRS
TVR Griffith 400 (coming soon)


Thu Oct 26, 2017 12:03 pm
Profile E-mail
GTM Nirvana
User avatar

Joined: Sun Oct 19, 2014 10:10 pm
Posts: 1136
Location: Bristol
GTM: Spyder
Post Re: Cumbrian coupe
Where does the silencer can go on that exhaust system?

Be ready for some smoke from that exhaust wrap too - I tried some black once and all the black burnt off nearly choking the whole county. The wrap was almost white after a couple of week.

Have to say I'm loving the quality and attention to detail in this build :D


Thu Oct 26, 2017 1:14 pm
Profile E-mail
Where is my Number Plate?

Joined: Mon Oct 01, 2007 7:25 pm
Posts: 974
Location: Near Milton Keynes
GTM: Cox/Coupe
Post Re: Cumbrian coupe
sanzomat wrote:
Where does the silencer can go on that exhaust system?



What's a silencer? :shock: :lol: :roll:



This build is turning out to be a really well thought out, classy Coupe.
Good job 8)

_________________
THE WORLD'S FASTEST 'A' SERIES COX GTM Standing 1/4 Mile in....13.502 @115mph MITP 08


Fri Oct 27, 2017 9:36 am
Profile
GTM delivered

Joined: Fri Sep 02, 2016 8:39 pm
Posts: 26
Location: Cumbria
GTM: Cox/Coupe
Post Re: Cumbrian coupe
sanzomat wrote:
Where does the silencer can go on that exhaust system?

The exhaust shown in the photos is just a standard, off-the-shelf exhaust manifold. Once the body has been fitted, we are going to get a custom exhaust made which should end up looking something like Derek Hambly's exhaust in the 'New Coupe Project' thread. I still can't attach any photos, sorry!

Ben


Sun Oct 29, 2017 11:27 am
Profile E-mail
GTM delivered

Joined: Fri Sep 02, 2016 8:39 pm
Posts: 26
Location: Cumbria
GTM: Cox/Coupe
Post Re: Cumbrian coupe
We have chosen to fit a new alloy fuel tank, this one was made up by concept racing and has a VDO fuel sender and is foam filled. During the designing we changed the small welded on brackets on the original design fuel tank, to use straps instead. The fuel pump and filter are both mounted on the bulkhead. There are outward and return pipes due to the fuel injection system, the rubber hoses attach to two metal fuel lines running down the centre of the car.

Attachment:
20170928_135709_resized.jpg [ 213.85 KiB | Viewed 11159 times ]

Attachment:
20170928_102239_resized.jpg [ 212.47 KiB | Viewed 11159 times ]

Attachment:
20170928_174100_resized.jpg [ 238.97 KiB | Viewed 11159 times ]

Attachment:
20170930_172057_resized.jpg [ 283.15 KiB | Viewed 11159 times ]


Wed Jan 17, 2018 7:20 pm
Profile E-mail
GTM delivered

Joined: Fri Sep 02, 2016 8:39 pm
Posts: 26
Location: Cumbria
GTM: Cox/Coupe
Post Re: Cumbrian coupe
We have modified the dash support rail to increase strength.

Attachment:
20171025_141346.jpeg [ 60.16 KiB | Viewed 11154 times ]

Attachment:
20171025_143941.jpeg [ 86.43 KiB | Viewed 11154 times ]


Using CAD (cardboard aided design!) we mocked up a possible dashboard design for the car, this will be cut out of some brushed aluminium sheet.

Attachment:
20171104_164927.jpeg [ 68.46 KiB | Viewed 11154 times ]


The speedo is powered by a mini spares electronic speedo adapter and the tacho gets the signal from the ECU. The two smaller digital gauges are for oil pressure, water temperature, fuel level and voltage.

Attachment:
20171104_165002.jpeg [ 81.57 KiB | Viewed 11154 times ]

Attachment:
20171104_165008.jpeg [ 89.74 KiB | Viewed 11154 times ]

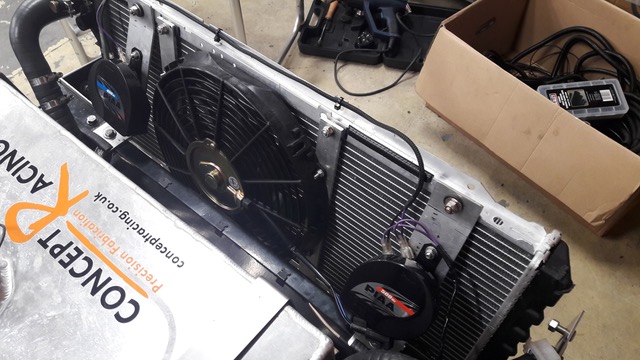

We have also fitted the washer bottle to the front subframe, a 6 fuse fusebox, some relays for the fan, fuel pump and heated screen. Also the horn has been fitted to the uprights of the radiator mounts.

Attachment:
20171104_165042.jpeg [ 58.49 KiB | Viewed 11154 times ]

Attachment:
20171104_165030.jpeg [ 87.3 KiB | Viewed 11154 times ]

Attachment:
20171027_170057.jpeg [ 54.26 KiB | Viewed 11154 times ]

Attachment:
20171027_170038.jpeg [ 86.06 KiB | Viewed 11154 times ]


Wed Jan 17, 2018 7:57 pm
Profile E-mail
On the Road

Joined: Wed Jul 31, 2013 11:47 am
Posts: 967
Location: Kano north Nigeria
GTM: Cox/Coupe
Post Re: Cumbrian coupe
All looking very nice and pristine, unlike mine that seems to get covered in half the dust from the Sahara after a week away :lol:
John


Thu Jan 18, 2018 6:03 am
Profile E-mail
Part built GTM

Joined: Mon Dec 30, 2013 11:51 am
Posts: 85
Location: West Yorkshire
GTM: Cox/Coupe
Post Re: Cumbrian coupe
Fantastic job keep posting the photos!


Thu Jan 25, 2018 10:44 am
Profile E-mail
GTM delivered

Joined: Fri Sep 02, 2016 8:39 pm
Posts: 26
Location: Cumbria
GTM: Cox/Coupe
Post Re: Cumbrian coupe
Hello,

Thanks for the support so far!

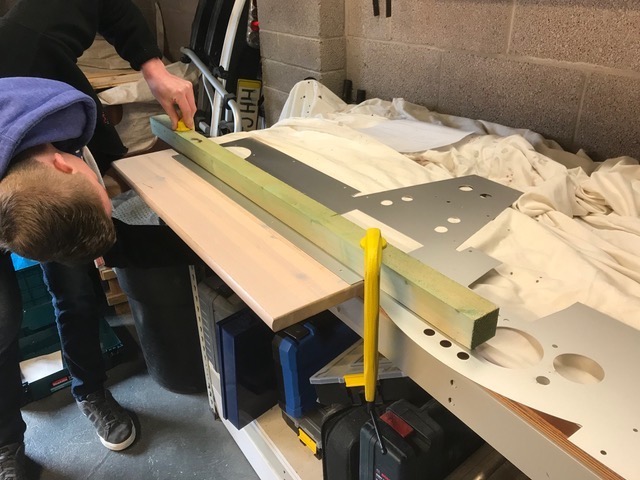

It is now complete enough to run the engine :D although there have been some teething problems with charging, we have now fixed the problem after many days of head scratching and part changing, we asked the guys on the mk1 forum and the first thing suggested worked. :roll: For those of you wondering it was to do with using an LED warning light. Anyway, it is running well now although it will need a rolling road session in the future. Also, the aforementioned dashboard has been laser cut out of brushed aluminium at a mates work and we fashioned a bending jig to form it. Most things have been fitted to it, just the switches need to be wired. Finally, we temporarily fitted the body and bonnet to see what it looked like. :) Next job is thinking about properly fitting the body and doors.

Ben

Attachment:
20180214_102307.jpeg [ 93.68 KiB | Viewed 9920 times ]

Attachment:
IMG_8252(1).jpeg [ 94.88 KiB | Viewed 9920 times ]

Attachment:
20180331_170734.jpeg [ 74.91 KiB | Viewed 9920 times ]

Attachment:
20180331_170752.jpeg [ 68.53 KiB | Viewed 9920 times ]

Attachment:
20180410_163056.jpeg [ 67.7 KiB | Viewed 9920 times ]


Last edited by lakelandgtm on Tue May 15, 2018 10:30 pm, edited 1 time in total.

Tue May 15, 2018 8:20 pm
Profile E-mail
